Grey Ampoule Leak Testing Machine Discharge High Pressure Automatic

Name: Grey Ampoule Leak Testing Machine Discharge High Pressure Automatic
Brand: Z-Zone
Price: 100 USD

Brand Name : Z-Zone

Model Number : JAZ

Certification : GMP ISO

Place of Origin : China

MOQ : 1

Price : 100,000-20,0000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20sets per month

Delivery Time : 60days

Packaging Details : Wooden packing

Bottle : 1-20ml

Output : 400bottles/min

Power : 10kV~35 kV

Weight : about 1000kg

Warranty : 1 Year

Color : Grey

Dimension : 3694mm×1180mm×1364mm(L×W×H)

Contact Now

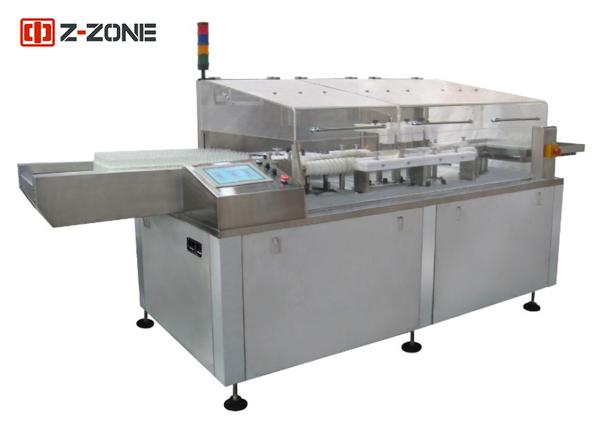

High-Pressure Discharge Ampoule Leakage Testing Machine

Application
The machine is dedicated to inspect Ampoule, vial and oral liquid products for possible liquid leakage. It can inspect pinhole and cracks on those bottles.

Parameters

Application	1-20ml
Capacity	300-400 bottles/min
Power	2.4kW,380V50Hz
Weight	about 1000kg
Dimension	3694mm×1180mm×1364mm(L×W×H)
Output power range	10kV~35 kV
Output frequency range	500Hz~50kHz
Warranty	2Years

Advantages

High efficiency. As well as be used in single production, can also be linked with production line. It can do automatic online inspection to containers one by one.
High accuracy. It can inspect the superfine crack and pinhole that the traditional inspection method can not achieve.
High safety. As the products are loaded with low energy in short time and they are insulated when they pass the inspection section, the inspect voltage causes no side effect to the product. It achieves non-destructive inspection to the container and product.

Grey Ampoule Leak Testing Machine Discharge High Pressure Automatic
