Servo Vial Leak Testing Machine High Frequency 1 Year Warranty

Name: Servo Vial Leak Testing Machine High Frequency 1 Year Warranty
Brand: Z-Zone
Price: 100 USD

Brand Name : Z-Zone

Model Number : AJLL

Certification : GMP ISO

Place of Origin : China

MOQ : 1

Price : 100,000-20,0000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20sets per month

Delivery Time : 60days

Packaging Details : Wooden packing

Application : 1-20ml

Output : 400bottles/min（adjustable）

Warranty : 1 Year

Color : Grey

Dimension : 3694mm×1180mm×1364mm(L×W×H)

Provider : Z-Zone

Capacity : 300bottles/min @2ml ampoule/vial

Contact Now

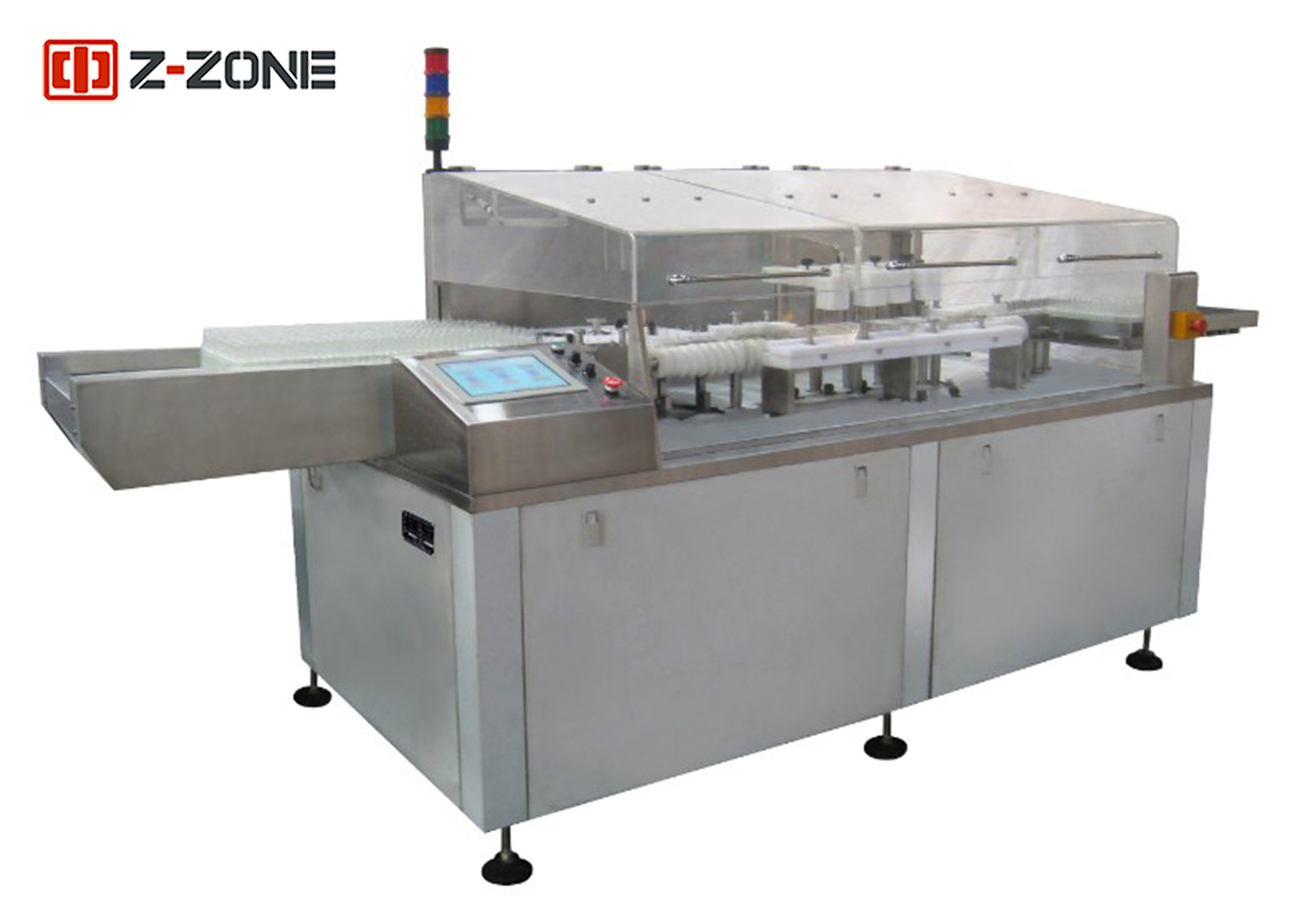

Z-Zone Servo Vial Leakage Test Machine

Application

The apparatus is designed specifically for the examination of vials and oral liquid commodities with regards to any probable liquid seepage. It is capable of detecting pinhole and fissures on said containers.

Parameters

Application	1-20ml
Capacity	300-400 bottles/min
Power	2.4kW,380V50Hz
Weight	about 1000kg
Dimension	3694mm×1180mm×1364mm(L×W×H)
Output power range	10kV~35 kV
Output frequency range	500Hz~50kHz
Warranty	2Years

Working principle

V is a power supply designed for high-frequency and high-voltage detection. It operates by connecting the launch and receiving pole to both ends, with C1 and C2 representing the capacitance value between the electrode and the capacitor. As the bottle wall partitions prohibit direct contact between the electrode and medicinal solution, capacitance is generated instead. The resistance value of the medicinal solution is represented as R. In the event that the ampoule bottle is not leaked, an inductive micro-circular I1 is generated. However, when the bottle leaks, the capacitance between the insulation bottle and the electrode is eliminated, resulting in a larger current I2 being generated within the circuit. With a simple comparison of the micro current levels, it becomes possible to determine whether the bottle has been leaked.
