Electric BFS Plastic Ampoule Machine Automatic Leak Testing Machine

Name: Electric BFS Plastic Ampoule Machine Automatic Leak Testing Machine
Brand: Z-Zone
Price: 150 USD

Buy cheap Electric BFS Plastic Ampoule Machine Automatic Leak Testing Machine product

Brand Name : Z-Zone

Model Number : LPJL

Certification : GMP

Place of Origin : China

MOQ : 1

Price : USD 150,000-250,000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10sets per month

Delivery Time : 60days

Packaging Details : Wooden packing

Application : plastic ampoule 65≤H≤120mm; L≤220mm(customization is available)

Output : 0-80 Row/min

Power : 3kW, 380V 50Hz

Dimension : 2800mm X935mmX1650mm

Weight : about 1200kg

Warranty : 2 Years

Model : JLPW

Package : Wooden packing

Feature : Automatic

Contact Now

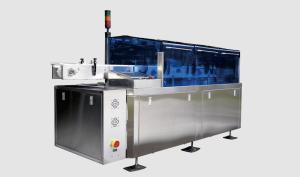

Z-Zone BFS Plastic Ampoule Leak Testing Machine

The application of this machine is designed to identify possible liquid leakage in all directions present in conjoined plastic ampoules. Additionally, it is also equipped to detect conjoined eyedrops, insuring quality and integrity of liquid products such as oral liquids.

Parameters

Application	Height of conjoined plastic ampoule 65≤H≤120mm
Length of conjoined plastic ampoule	L≤220mm(customization is available)
Output	0-80 Row/min
Electric capacity	3kW, 380V 50Hz
Detecting Channel Power	200W
Voltage of High frequency high voltage	0～30kV adjustable
Frequency of High frequency high voltage	0～10kHz adjustable
Dimension	2800mm X935mmX1650mm
Weight	about 1200kg

The work principle involves placing the conjoined plastic ampoule within the transporter's interval, allowing it to be transferred to the detecting channel. There are two detecting channels (channel 1 and channel 2), each capable of detecting the head, body, and bottom of the ampoule. After passing through the detecting channels, the ampoule is then transferred to channel 3 and channel 4, where the head, body, and bottom on the other side of the ampoule are similarly detected. Finally, the reject unit separates the qualified and unqualified ampoules. The qualified ampoules are transferred to the next station via conveyer bell mesh, while the unqualified are routed to an unqualified collection device (not shown on the graph as it is customarily provided by clients).

Electric BFS Plastic Ampoule Machine Automatic Leak Testing Machine

Product Tags:

Electric BFS Plastic Ampoule Machine

BFS Plastic Ampoule Machine Automatic

Electric BFS Plastic Ampoule Machine Automatic Leak Testing Machine Images
